Descripción
The Shelly EM Mini Gen4 is an ultra-compact smart energy meter designed for accurate, real-time monitoring of electricity consumption. It is ideal for installation in very small spaces, behind sockets, switches or in other areas where standard modules do not fit easily.
This model represents a significant evolution from the previous generation, offering compatibility with Matter, Zigbee, Wi-Fi and Bluetooth, making it extremely flexible for integration with modern smart home systems.
The Shelly EM Mini Gen4 does not directly control the load, but is dedicated to measuring consumption, providing accurate data on voltage, current, active power and active energy. It is an excellent choice for energy monitoring, cost optimisation and consumer diagnostics.
Key features
- Smart meter for energy consumption monitoring
-
Matter compatible
-
Wi-Fi, Zigbee and Bluetooth connectivity
- Ultra-compact design for installation in confined spaces
- Real-time consumption measurement
- Local data storage for up to 10 days
- Compatible with Android and iOS
- Support for MQTT, scripting, webhooks and RPC
- Wi-Fi extender + Zigbee repeater
- Integrated web interface
Features and benefits
? Accurate consumption monitoring – The Shelly EM Mini Gen4 measures voltage, current, active power and active energy in real time, providing a clear picture of electricity consumption.

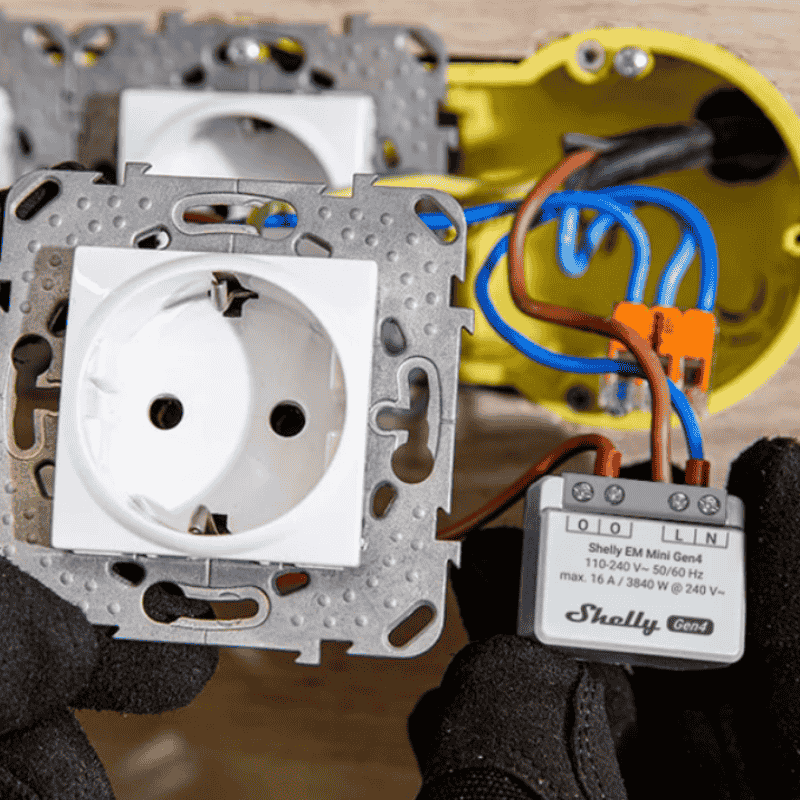

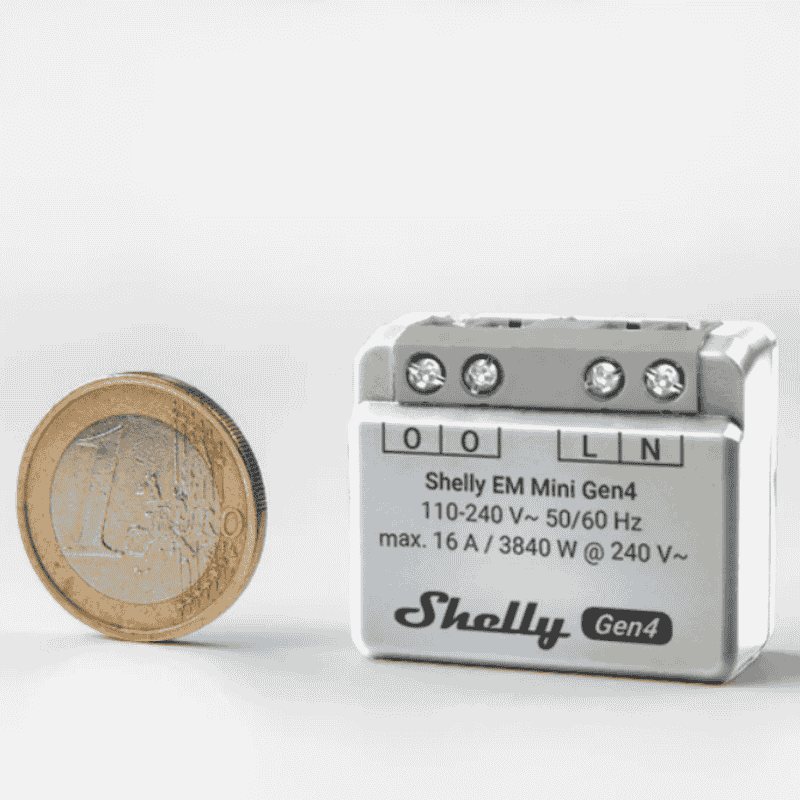

? Compact design for discreet installation - Fits perfectly into very tight spaces, making it ideal for retrofitting into existing installations.
? Modern compatibility – Thanks to support for Matter, Zigbee, Wi-Fi and Bluetooth, the device can be easily integrated into current smart home ecosystems.
? Local history and data export – Data is stored locally for up to 10 days, with 1-minute resolution, and can be exported in CSV or JSON format.
? Ideal for energy efficiency – Helps you identify high-consumption devices, optimise costs and detect any consumption anomalies.
? Extensive smart features - Supports scripting, MQTT, webhooks, advanced schedules and KVS, making it suitable for more complex automations.
Applications
- Monitoring socket and circuit consumption
- Household appliance consumption analysis
- Energy cost optimisation
- Smart home and residential automation
- Monitoring consumption in small commercial premises
- Retrofitting in confined spaces
| General information |
| Model |
Shelly EM Mini Gen4 (S4EM-001PXCEU16) |
| Product type |
Compact smart energy meter |
| Installation |
In a box / wall box |
| Matter compatible |
Yes |
| Dimensions and construction |
| Dimensions |
29 x 34 x 16 mm |
| Weight |
13 g |
| Housing material |
Plastic |
| Case colour |
White |
| Power supply |
| Power supply voltage |
110–240 V AC |
| Power consumption |
< 1 W |
| Energy measurement |
| AC voltmeter |
110–240 V AC, 50/60 Hz |
| Voltmeter accuracy |
±1% |
| AC ammeter |
0–16A |
| Ammeter accuracy |
±1% |
| Available measurements |
Active power, active energy |
| Maximum measured power |
3840 W |
| Data storage |
| Local history |
up to 10 days |
| Storage resolution |
1 minute |
| Data export |
CSV / JSON via RPC |
| Connectivity |
| Wi-Fi |
802.11 b/g/n/ax |
| Bluetooth |
5.0 |
| Zigbee |
802.15.4 |
| Smart features |
| MQTT |
Yes |
| Scripting |
Yes |
| UDP |
Yes |
| Webhooks |
Yes |
| Appointments |
20 |
| Advanced schedules |
Yes |
| KVS |
Yes |
| Web interface |
Yes |
| Zigbee repeater |
Yes |
| Compatibility |
| Platforms |
Android, iOS |
| Operating conditions |
| Operating temperature |
-20°C to +40°C |
| Humidity |
30%–70% RH |
| Hardware |
| CPU |
ESP-Shelly-C68F |
| Flash memory |
8 MB |
