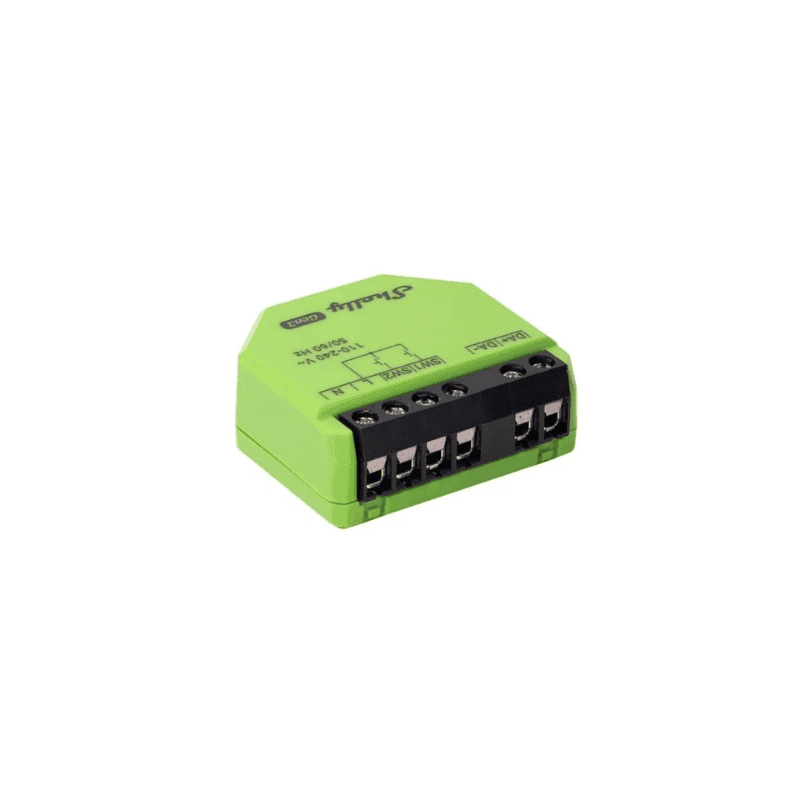

The Shelly DALI Dimmer Gen3 is a smart gateway between the Shelly ecosystem and a DALI lighting network, designed to control DALI-compatible light sources. The device functions as a single-master DALI controller and allows the brightness of connected light fixtures to be adjusted.
It is ideal for residential, commercial or professional projects where DALI lighting needs to be integrated into a smart home or automation system. The Shelly DALI Dimmer Gen3 enables local and remote control, automated scenes, weekly schedules and integration with the Shelly Smart Control app or third-party systems.

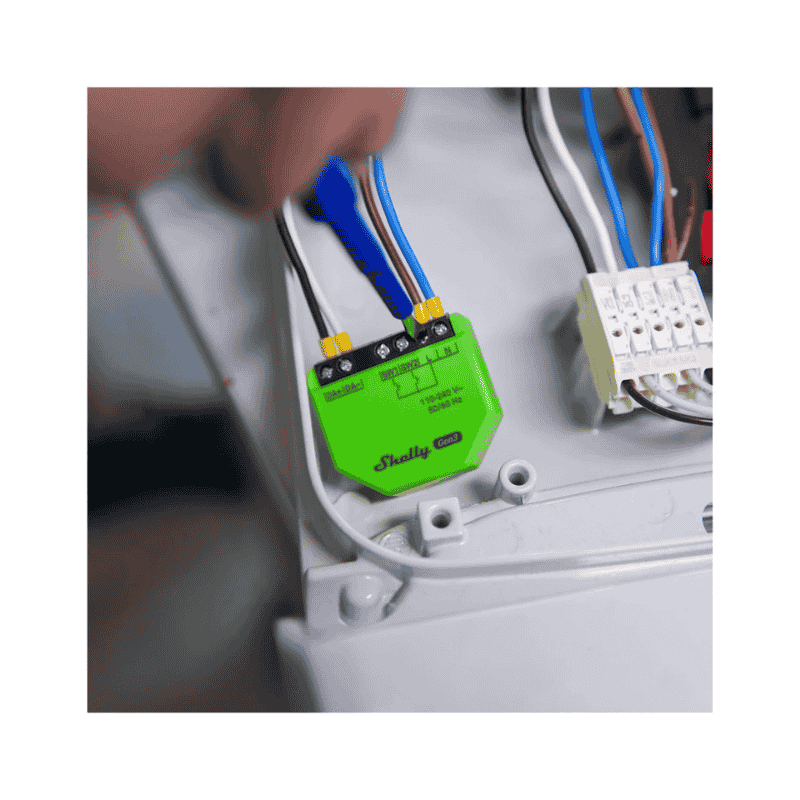

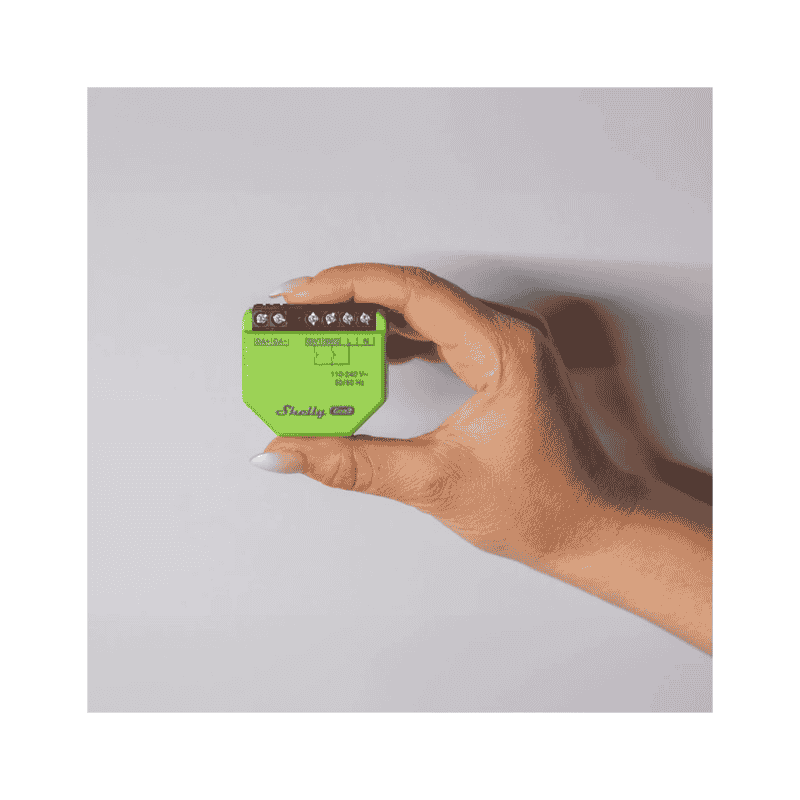

Thanks to its compact dimensions, it can be installed in a flush-mounted box or in suspended ceilings, providing a discreet and efficient solution for lighting control.
Key features
- Smart gateway between Shelly and the DALI network
- DALI (DT6) dimming control
-
Wi-Fi + Bluetooth connectivity
- Compatible with Android, iOS, Amazon Alexa, Google Home and Samsung SmartThings
- Support for MQTT, scripting, webhooks and KNX
- Weekly schedules and local scenes
- Night mode, minimum/maximum brightness
- No additional hub required
- Flush-mounted or suspended ceiling installation
- Integrated web interface
Features and benefits
? DALI lighting integration into the Shelly ecosystem – Allows control of DALI lights directly from the Shelly app or via compatible smart home systems.
? Precise brightness control - You can adjust the light intensity according to a scenario, schedule, time of day or your preferences.
? Advanced automations
The device supports:
- weekly schedules
- auto on/off
- webhooks
- local scenarios
- scripting
? Control via standard switches – Supports various switch and button configurations for manual dimming control.
? Ideal for professional lighting - Suitable for DALI lighting applications in homes, offices, commercial spaces or architectural projects.
? No additional hub required - Operates locally or remotely without the need for a dedicated hub.
Applications
- DALI lighting control in homes
- Office lighting automation
- Commercial and showroom lighting
- Premium smart home projects
- DALI lighting integration into the Shelly ecosystem
- Suspended ceiling / discreet installation in professional spaces
| General information |
| Model |
Shelly DALI Dimmer Gen3 (S3DM-0A1WW) |
| Product type |
Smart DALI lighting controller |
| Installation |
In-wall / suspended ceilings |
| DALI control type |
Single-master application controller |
| DALI functions |
| Dimming |
Yes (DT6) |
| Colour temperature control |
No |
| Number of DALI units |
up to 5 DALI units |
| Guaranteed bus supply current |
10 mA |
| Maximum bus current |
< 35 mA |
| Bus voltage |
16V nominal |
| Power supply |
| Supply voltage |
110–240 V AC ±10%, 50/60 Hz |
| Power consumption |
< 2 W |
| Neutral required |
Yes |
| Inputs / Outputs |
| Switch/button inputs |
2 (S1 and S2) |
| DALI output |
D+ / D- |
| Connectivity |
| Wi-Fi |
802.11 b/g/n |
| Bluetooth |
4.2 |
| Smart features |
| Schedules |
20 |
| MQTT |
Yes |
| Scripting |
Yes |
| Webhooks |
Yes |
| KNX net/IP |
Yes |
| Encryption |
Yes, TLS 1.2 |
| Compatibility |
| Platforms |
Android, iOS, Amazon Alexa, Google Home, Samsung SmartThings |
| Sensors and safeguards |
| Internal temperature sensor |
Yes |
| Overheating protection |
Yes |
| Operating conditions |
| Operating temperature |
-20°C to +40°C |
| Humidity |
30%–70% RH |
| Dimensions |
| Dimensions |
42 x 37 x 17 mm |
| Weight |
18 g |
| Hardware |
| CPU |
ESP32-C3 Shelly |
| Flash memory |
8 MB |
