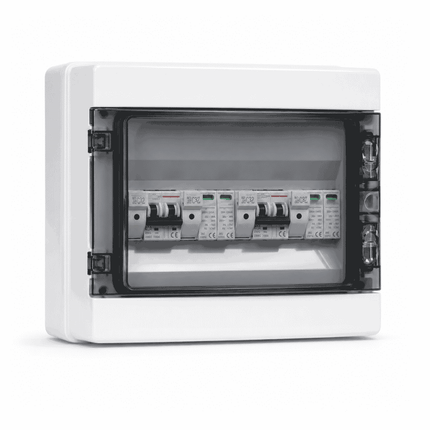

Name: Leader DC Protection Box for 2 Strings
Brand: Leader
SKU: 2STLEA
Price: 134.0 EUR
Availability: InStock

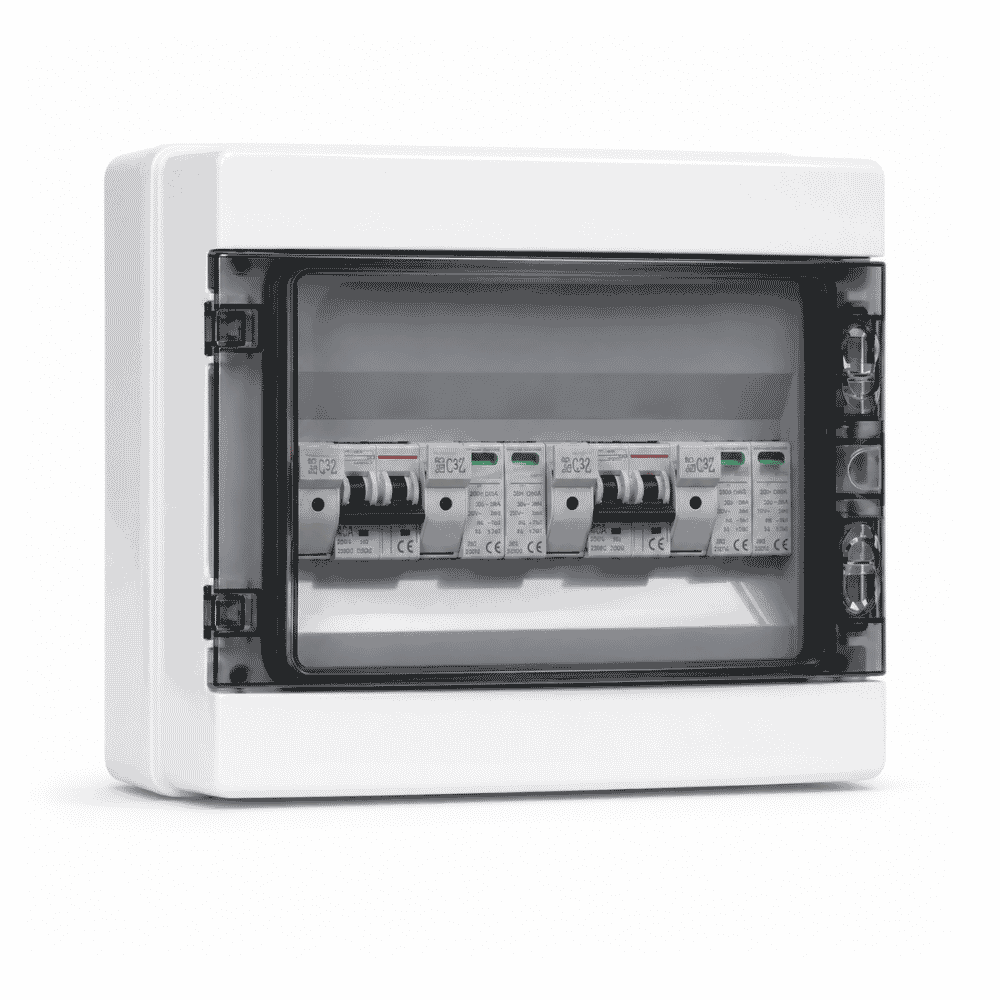

Leader DC Protection Box for 2 Strings

Comparte

Descripción

The Leader LDDB-PV2/2-1000-M protection box is designed for photovoltaic installations with two PV strings and an operating voltage of up to 1,000V DC. It protects DC circuits against overvoltage and allows the installation to be quickly isolated during maintenance work or in the event of a fault.

All components are pre-assembled inside an IP65-rated enclosure that is resistant to water, dust, and UV radiation, making it suitable for both indoor and outdoor installation. The 2-input/2-output configuration enables the safe connection of two photovoltaic strings to the inverter, reducing installation time and providing a reliable solution for residential and commercial systems.

The box is equipped with two Type II surge protection devices (SPDs) rated for 1,000V DC, a 63A DC switch-disconnector, and four photovoltaic fuses, providing a high level of protection for the photovoltaic panels and inverter.

Thanks to its robust construction and high-quality components, the LDDB-PV2/2-1000-M helps improve the safety and reliability of the entire photovoltaic installation.

Main advantages

Protection box for two photovoltaic strings
Maximum voltage of 1,000V DC
2-input/2-output configuration
IP65-rated enclosure
Two Type II DC surge protection devices
63A DC switch-disconnector
Four photovoltaic fuses
Pre-assembled components
Quick installation
Suitable for residential and commercial photovoltaic systems

Technical specifications

Category	Feature	Specification
Configuration	Number of strings	2 inputs / 2 outputs
Model	Product code	LDDB-PV2/2-1000-M
Voltage	Maximum voltage	1,000V DC
Enclosure	Model	HA-18
Enclosure	Protection rating	IP65
SPD	Model	LD-SP3P-40KA
SPD	Quantity	2 units
SPD	Type	Type II DC
DC switch	Model	LDMT-4P-63
DC switch	Rated current	63A
Fuses	Model	PV0911-1P/BX0234-15
Fuses	Quantity	4 units
Installation	Mounting type	Wall-mounted
Application	Use	Photovoltaic systems with 2 strings

Compatibility

Compatible with:

On-grid inverters
Hybrid inverters
Photovoltaic systems rated up to 1,000V DC
Photovoltaic installations with two strings

Installation, configuration, and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and applicable regulations.
