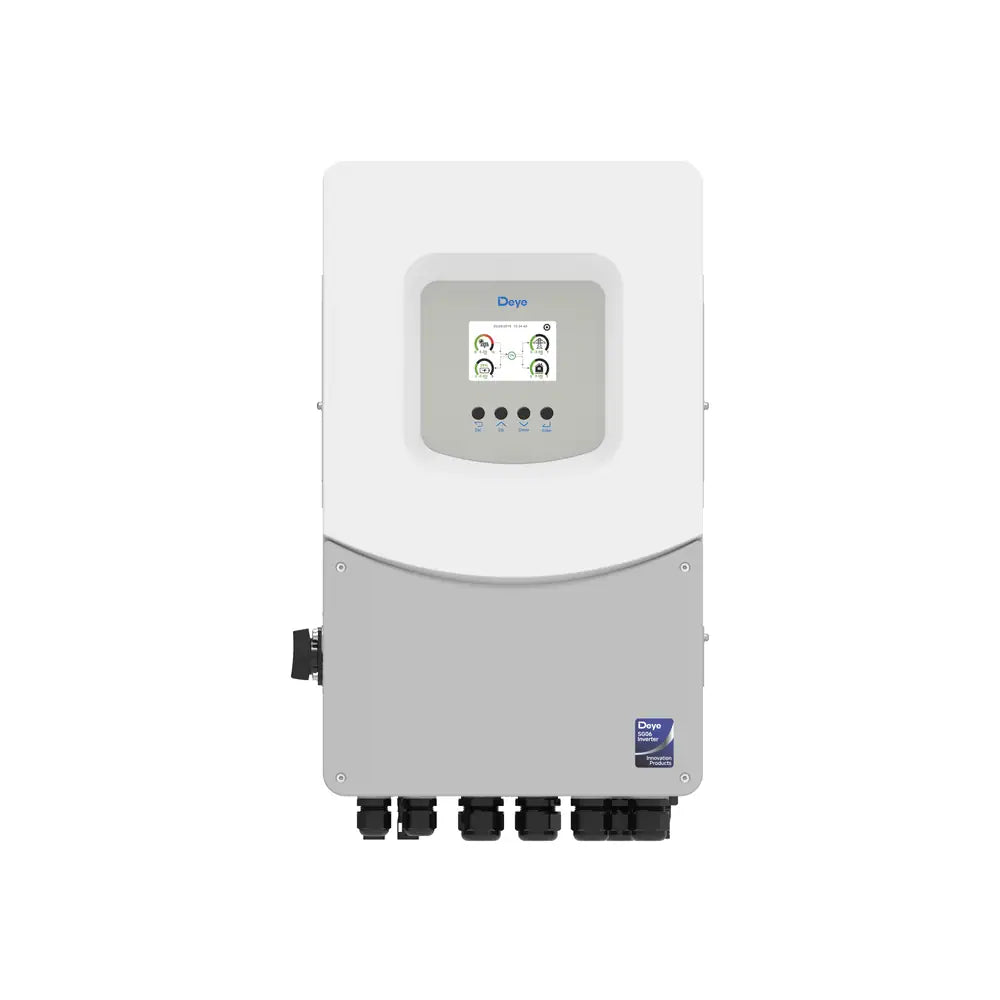

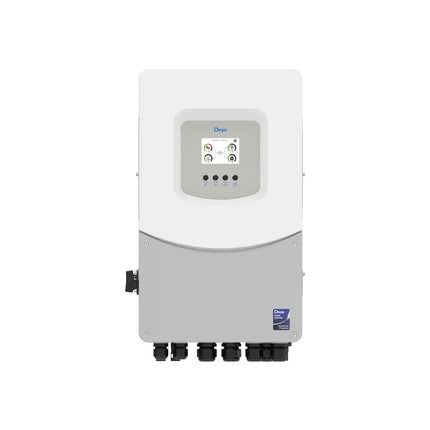

The DEYE SUN-3.6K-SG06LP1-EU-BM2 hybrid inverter is a modern solution for efficient energy management in residential photovoltaic systems. With a rated output power of 3.6 kW, single-phase operation and compatibility with low-voltage 48V batteries, it enables the use of solar energy, storage of surplus electricity and power supply to household appliances according to energy demand.
Equipped with two independent MPPT trackers, the inverter optimizes photovoltaic energy production even when solar panels are installed on surfaces with different orientations. It supports a maximum PV input power of 5,760 W, with a maximum PV access power of 7,200 W, according to the manufacturer's specifications.
Intelligent Energy Management
The inverter can operate in grid-connected systems or configurations with backup power, managing energy from solar panels, batteries and the electrical grid.
With 6 programmable battery charging and discharging time periods, users can adjust battery operation according to household energy consumption and electricity tariffs.
48V Battery Compatibility
The model is compatible with low-voltage batteries operating within a 40–60V range, including lithium-ion and lead-acid batteries.
The maximum charging and discharging current of 90A enables efficient management of stored energy. Communication with compatible Battery Management Systems (BMS) supports battery monitoring and control.
Backup Power and Flexibility
The inverter can supply power to loads connected to its backup output when the electrical grid is unavailable, subject to the system configuration and technical operating limits.
It supports parallel operation of up to 16 compatible inverters, allowing the system to be expanded according to future energy requirements.
The AC coupling function enables integration into certain existing photovoltaic installations, while generator compatibility provides additional flexibility for energy management.
Control and Monitoring

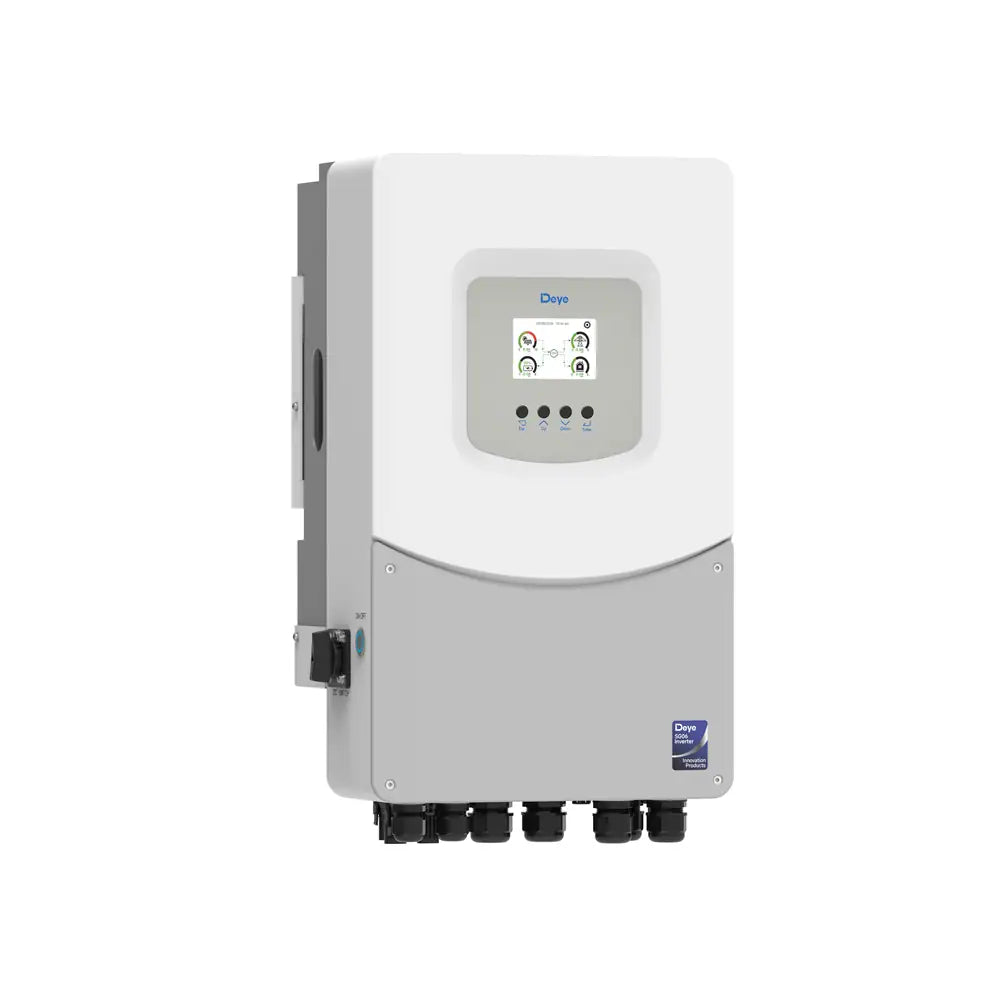

The color LCD touchscreen allows users to view key operating parameters and configure inverter functions.
Wi-Fi, RS485 and CAN communication interfaces facilitate monitoring and communication with compatible equipment.
The IP65-rated enclosure provides protection against dust and water, allowing installation under the conditions specified by the manufacturer.
Key Features and Benefits
- Rated output power: 3,600 W
- Single-phase operation, 220/230V
- Compatible with low-voltage 48V batteries
- Maximum battery charging/discharging current: 90A
- Two independent MPPT trackers, 18A + 18A
- Maximum PV input power: 5,760 W
- Maximum efficiency: 97.6%
- Backup power supply for compatible loads
- Parallel operation of up to 16 inverters in compatible configurations
- 6 programmable time periods for battery management
- Color LCD touchscreen
- Wi-Fi, RS485 and CAN communication
- IP65 protection rating
The DEYE SUN-3.6K-SG06LP1-EU-BM2 is suitable for households looking to increase solar energy self-consumption, integrate battery storage and reduce dependence on electricity supplied by the grid.
| General Information |
| Manufacturer |
DEYE |
| Model |
SUN-3.6K-SG06LP1-EU-BM2 |
| Inverter Type |
Hybrid |
| Number of Phases |
Single-Phase |
| Rated Power |
3,600 W |
| Rated AC Voltage |
220 / 230 V |
| Battery Parameters |
| Battery Type |
Lithium-ion / Lead-acid |
| Battery Voltage Range |
40–60 V |
| Maximum Charging Current |
90 A |
| Maximum Discharging Current |
90 A |
| Number of Battery Inputs |
1 |
| Battery Communication |
CAN / RS485 |
| PV Input Parameters (DC) |
| Maximum PV Access Power |
7,200 W |
| Maximum PV Input Power |
5,760 W |
| Maximum PV Voltage |
500 V |
| Start-up Voltage |
125 V |
| Rated PV Voltage |
370 V |
| MPPT Voltage Range |
150–425 V |
| Number of MPPT Trackers |
2 |
| Number of Strings per MPPT |
1 + 1 |
| Maximum PV Input Current |
18 + 18 A |
| Maximum PV Short-Circuit Current |
27 + 27 A |
| AC Input / Output Parameters |
| Rated Active Power |
3,600 W |
| Maximum Apparent Power |
3,960 VA |
| Rated Voltage |
220 / 230 V |
| Rated Frequency |
50 / 60 Hz |
| Grid Connection |
L + N + PE |
| Rated Input / Output Current |
16.4 / 15.7 A |
| Maximum Input / Output Current |
18 / 17.3 A |
| Maximum AC Pass-Through Current |
50 A |
| Off-Grid Peak Power |
2 × rated power for 10 seconds |
| Total Harmonic Current Distortion (THDi) |
< 3% |
| Efficiency |
| Maximum Efficiency |
97.6% |
| MPPT Efficiency |
> 99% |
| Features and Functions |
| Parallel Operation |
Up to 16 compatible units |
| Programmable Battery Time Periods |
6 |
| AC Coupling |
Yes |
| Generator Support |
Yes |
| Backup Power Supply |
Yes |
| Communication and Protection |
| Display |
Color LCD Touchscreen |
| Communication Interfaces |
Wi-Fi, RS485, CAN |
| Protection Rating |
IP65 |
