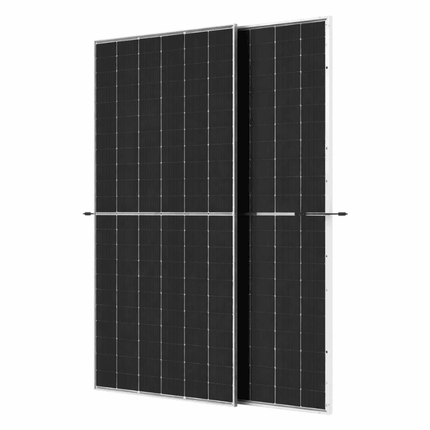

Name: 620W N-Type Bifacial Photovoltaic Panel, Osda
Brand: Osda
SKU: ODA620-33V-MHDRz
Price: 105.2 EUR

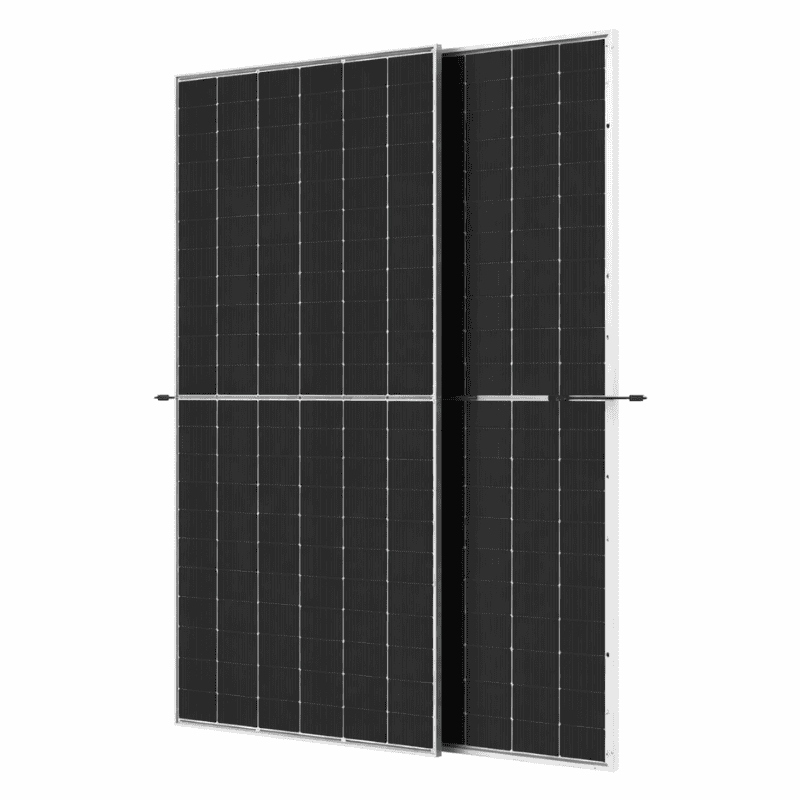

620W N-Type Bifacial Photovoltaic Panel, Osda

Comparte

Descripción

Download the datasheet

Sales and delivery conditions

⚠️ For orders requiring delivery, the panels are sold exclusively by full pallet of 31 units.

For orders collected directly from the SolarTech warehouse, the panels can also be purchased individually.

The Osda 620W N-Type Bifacial Photovoltaic Panel is designed for photovoltaic installations requiring high power output while making efficient use of the available installation area. The model uses 132 monocrystalline N-Type cells and achieves an efficiency of 22.96%.

Bifacial technology enables the panel to capture light through both its front and rear sides. When installed above a light-reflective surface, such as light-coloured gravel, a white membrane, or concrete, the panel can also use the solar radiation reaching its rear side.

Under the BNPI conditions specified in the datasheet, with front-side irradiance of 1,000W/m² and rear-side irradiance of 135W/m², the resulting output can reach 687W. This value represents a standardised bifacial testing condition and is not the panel’s rated STC output.

The dual-glass construction uses 2mm tempered front glass with an anti-reflective coating and 2mm rear glass. This structure provides protection for the cells and is suitable for residential, commercial, and industrial photovoltaic installations.

Main features

Rated output of 620W under STC conditions
Monocrystalline N-Type cells
132 cells in a 12 × 11 configuration
Bifacial technology with a bifaciality rate of 80% ± 5%
High efficiency of 22.96%
Good performance under low-light conditions
Low LID/LeTID degradation
Bifacial dual-glass construction
Silver anodised aluminium alloy frame
IP68 junction box with three bypass diodes
Maximum system voltage of 1,500V
Mechanical resistance of 5,400Pa for snow loads and 2,400Pa for wind loads
Pmax temperature coefficient of -0.290%/°C

Advantages

More energy from the same area

The 620W output and 22.96% efficiency enable the development of photovoltaic installations with a high power density.

Power generation on both sides

The rear side can convert reflected light into electricity when the installation conditions and the surface beneath the panel support bifacial energy capture.

Good performance at high temperatures

The Pmax temperature coefficient of -0.290%/°C limits power losses when the cell temperature increases.

Improved low-light performance

N-Type technology contributes to energy production during periods of lower irradiance, such as in the morning and evening.

Robust construction

The dual-glass structure, anodised aluminium frame, and IP68 junction box protect the module’s components under normal installation and operating conditions.

Recommended applications

Residential photovoltaic systems
Commercial and industrial buildings
Rooftop installations
Ground-mounted systems
Photovoltaic carports
Projects where reflected light can be captured through the rear side

Electrical specifications – STC

Specification	Value
Reference model	ODA620-33V-MHDRz
Rated power Pmax	620W
Voltage at maximum power Vmp	41.46V
Current at maximum power Imp	14.96A
Open-circuit voltage Voc	48.78V ± 3%
Short-circuit current Isc	15.89A ± 3%
Module efficiency	22.96%

Bifacial performance – BNPI

Specification	Value
Resulting maximum power	687W
Voltage Vmp	41.59V
Current Imp	16.53A
Voltage Voc	48.93V ± 3%
Current Isc	17.56A ± 3%

BNPI values measured at front-side irradiance of 1,000W/m² and rear-side irradiance of 135W/m².

Construction characteristics

Specification	Value
Cell type	Monocrystalline N-Type, 182 × 105mm
Number of cells	132, 12 × 11 configuration
Dimensions	2,382 × 1,134 × 30mm
Weight	32.40kg
Front glass	2mm, tempered, with anti-reflective coating
Rear glass	2mm, glazed glass
Frame	Silver anodised aluminium alloy
Junction box	IP68, 1,500VDC, 3 Schottky bypass diodes
Cables	4mm², positive 300mm and negative 300mm
Connectors	IP68

Operating parameters

Specification	Value
Maximum system voltage	1,500V
Operating temperature	-40°C to +85°C
Maximum series fuse rating	28A
NMOT	45°C ± 2°C
Snow/wind load	5,400Pa / 2,400Pa
Protection class	Class II
IEC fire rating	Class A

Temperature coefficients

Specification	Value
Pmax coefficient	-0.290%/°C
Voc coefficient	-0.250%/°C
Isc coefficient	+0.045%/°C

Packaging

Specification	Value
Panels per pallet	31 units

Technical warning

The additional output generated through the rear side depends on the surface beneath the panel, its reflectivity, the installation height and angle, the spacing between rows, and the irradiance conditions.

String sizing must take into account the panel’s voltage and current ratings, the inverter’s limits, and the minimum and maximum temperatures at the installation site.

Installation, configuration, and commissioning must be carried out by qualified personnel in accordance with the manufacturer’s instructions and applicable regulations.

Warranty and standards

The datasheet specifies:

15-year product warranty
30-year performance warranty
Guaranteed output of 87.4% at the end of the 30-year period

The following standards are mentioned: IEC 61215:2021, IEC 61730:2023, IEC 61701, IEC 62716, IEC 60068, and IEC 62804.
